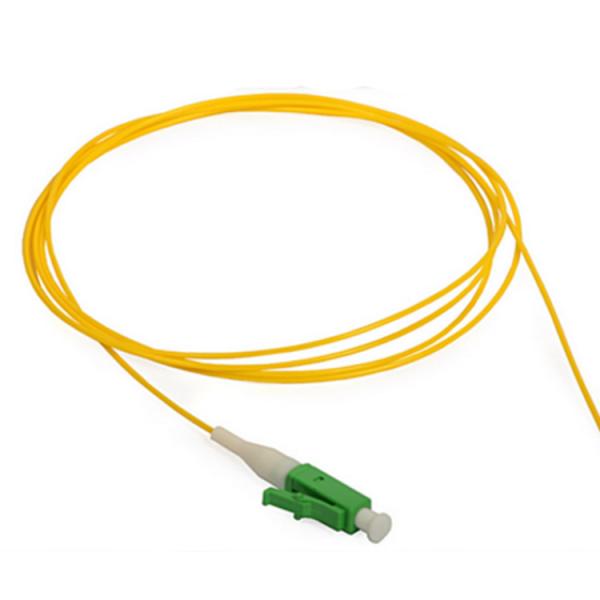

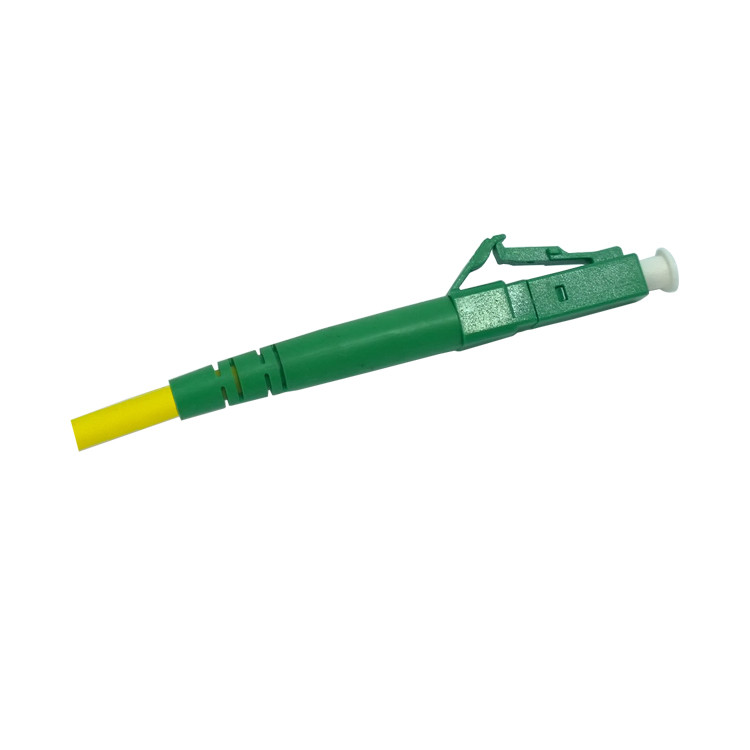

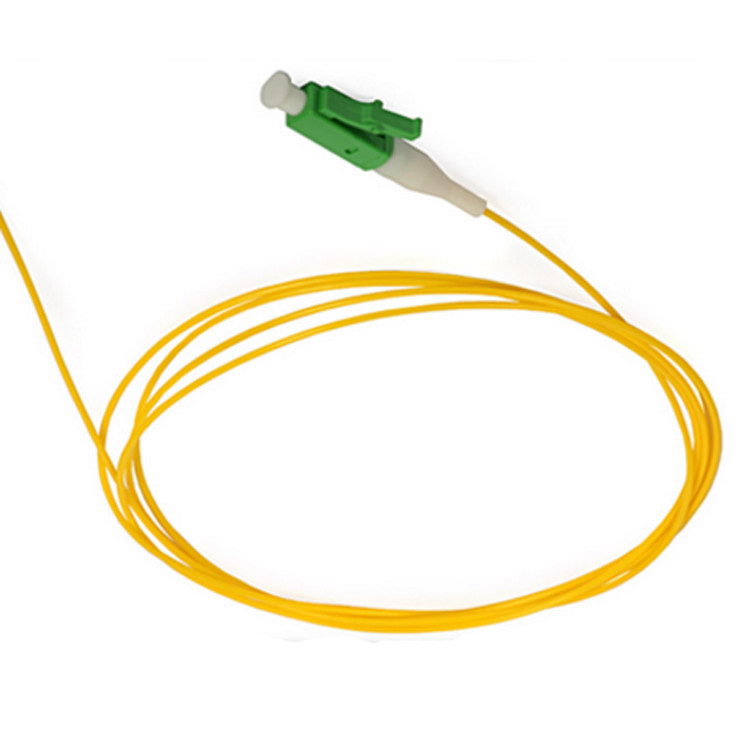

60dB LC APC 0.9mm Fiber Optic Pigtail

Name: 60dB LC APC 09mm Fiber Optic Pigtail
Brand: CY COM
Price: 0.2 USD

Quality 60dB LC APC 0.9mm Fiber Optic Pigtail wholesale

Brand Name : CY COM

Model Number : LC/APC

Certification : RoHS,ISO9001

Place of Origin : Shenzhen China

MOQ : 10PCS

Price : 0.2USD-0.3USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000pcs per day

Delivery Time : 3-5 working days

Packaging Details : PE bag or plastic box and Carton box

Insertion loss : IL<0.2db

Length : 1.5m or customized

Material : PEI PBT

Fiber type : G652D/G657A1/G657A2 etc.

Connector : LC

Ferrule End-face : APC

Cable diameter : 0.9mm/2.0mm/3.0mm

Contact Now

SC UPC fiber optic pigtail RL≥60dB,PEI High temperature resistant material,Green housing

Description:

Fiber optic pigtail are suited for equipment jumper cord, cross connects, and work area connections. All pigtail are manufactured using riser grade cable and are factory tested to make sure performance to meet Telcordia standards.

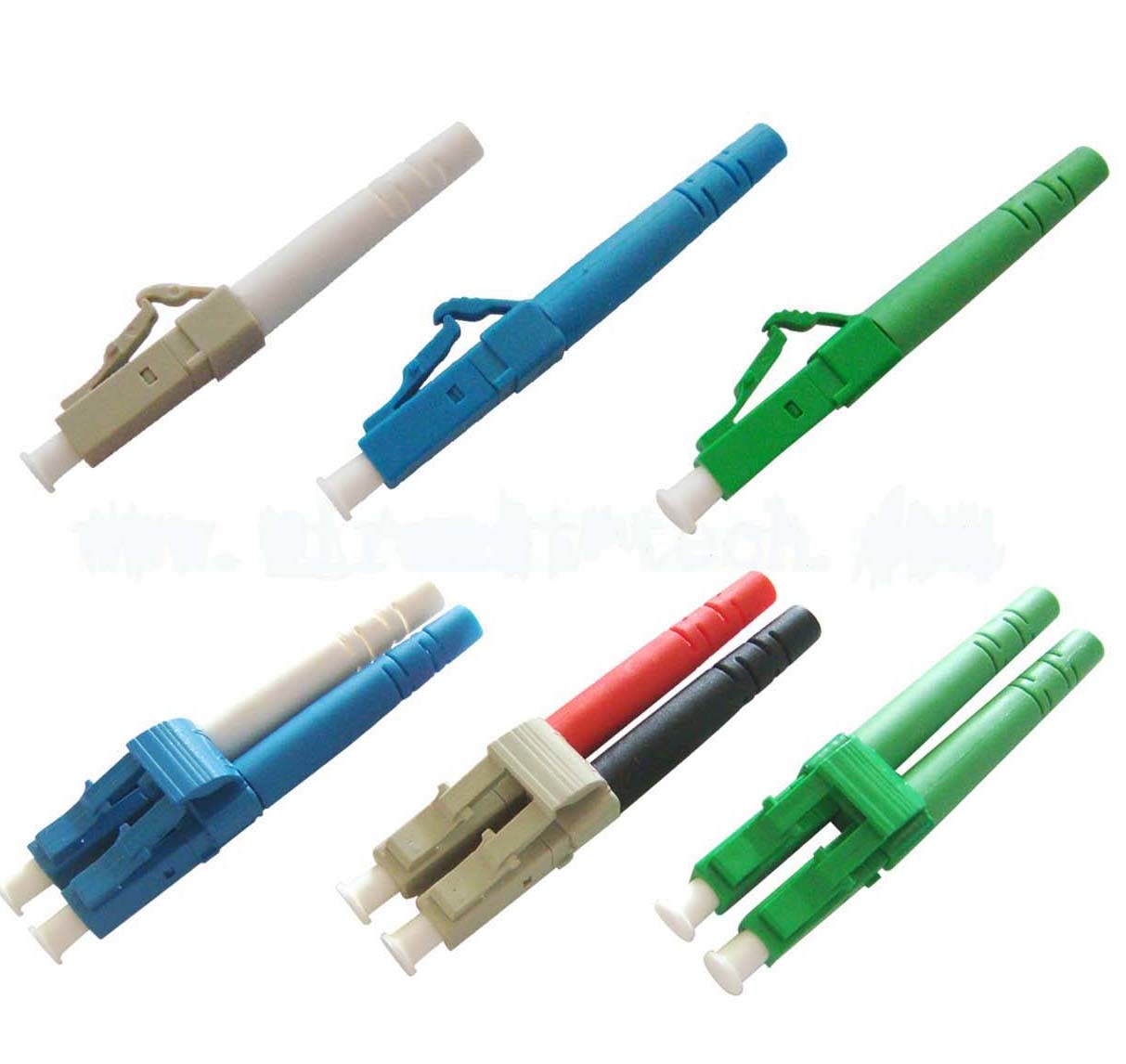

LC stands for Lucent Connector. It is a small form-factor fiber optic connector,half the size of the SC

Features :

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss

Good in repeatability and exchangeability

High dense connection, easy for operation

Application:

Telecommunication

Computer networks

CATV networks Active device termination

Instrumentation

Specification:

Parameter		Insertion loss(typical)	Return loss	Operating wavelength	Exchangeability	Vibration	Operating temperature	Storage temperature
unit		dB	dB	nm	dB	dB	℃	℃
LC	UPC	≤0.2	≥50	1310, 1490,1550	≤0.2	≤0.2	-40~75	-45~85
LC	APC	≤0.3	≥60	1310, 1490,1550	≤0.2	≤0.2	-40~75	-45~85

Order Information:

1. Connector type: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4

2. Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)

3. Cable count: Simplex or Duplex, bundle pigtail, ribbon pigtail

4. Diameter of cable: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm

5. Cable length: 2Meter, 5Meter, 10Meter, customized length

6. Cable color: Yellow for SM, Orange for OM1 & OM2, Aqua for OM3, Violet for OM4, customized color

7. Outer jacket:PVC Riser cable, PVC Plenum cable, LSZH cable

60dB LC APC 0.9mm Fiber Optic Pigtail

Product Tags:

60dB Fiber Optic Pigtail

G652D Simplex optic fiber pigtail

G652D 0.9mm SC UPC Pigtail

60dB LC APC 0.9mm Fiber Optic Pigtail Images
