Copper Alloy Big D Type FC APC ROSH Fiber Optics Accessories

  • 1
  • 2

Brand Name : CY COM

Model Number : FC / APC

Certification : ISO9001:2015 ,ISO14001:2015,ROSH,SGS

Place of Origin : Shenzhen China

MOQ : 100pcs

Price : USD 0.12-0.24 / PCS

Payment Terms : T/T, Western Union

Supply Ability : 5 MIllion PCS / Month

Delivery Time : 3-7 days

Packaging Details : Plastic Box

Item : FC / APC Adapter

Cap Color : Green

Shape : Big D type

Test : 100%

Materials : Zinc / Copper alloy

Ferrule material : Ceramic

Contact Now

Copper Alloy Big D Type FC APC ROSH Fiber Optics Accessories

Description:
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
FC fiber optic adapters are with metal housing, single-mode FC adapters are with zirconia sleeves, multi-mode FC adapters are with bronze sleeves.

Features:
FC mode used matal thread connecting strructure
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
APC,UPC optional
Simplex / Duplex

Application:
Fiber optic communication network
Optical broadband process network
Optical instrumentation network
Telecommunication Networks
Optic Local Area Network
Adapter docking
Equipment Test
CATV System

Specification:

ParameterUnitLC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,MTRJE2000
SMMMSMMMSM
PCUPCAPCPCPCUPCPCPCAPC
Insertion LossdB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
Return LossdB≥45≥50≥60≥30≥45≥50≥35≥55≥75
ExchangeabilitydB≤0.2≤0.2≤0.2
RepeatabilitydB≤0.2≤0.2≤0.2
DurabilityTime＞1000＞1000＞1000
Operating Temperature℃-40~75-40~75-40~75
Storage Temperature℃-45~85-45~85-45~85

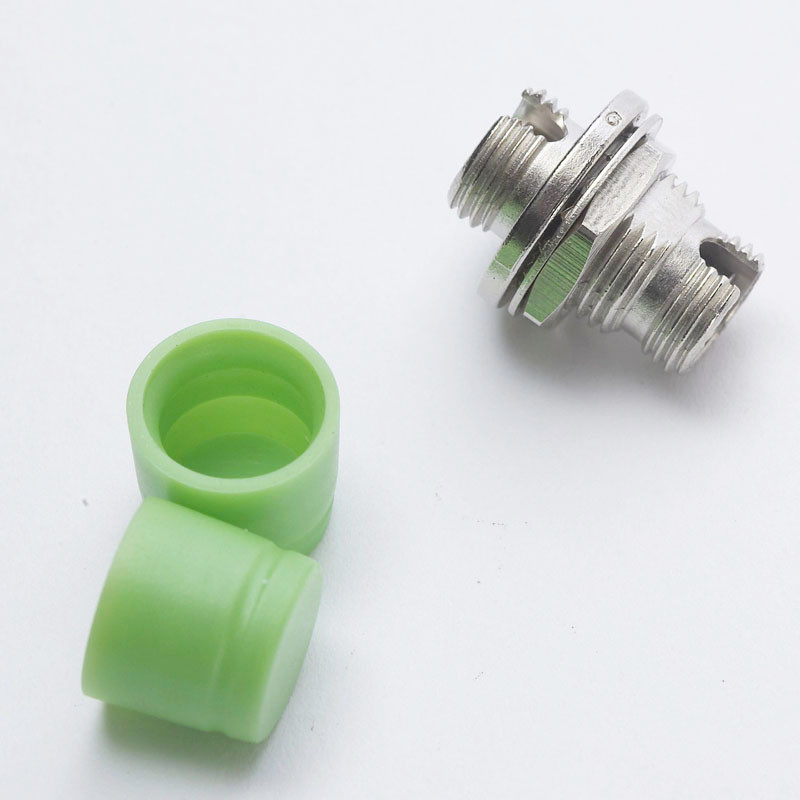

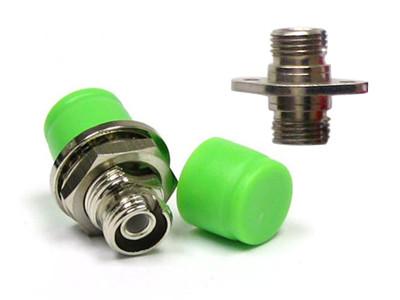

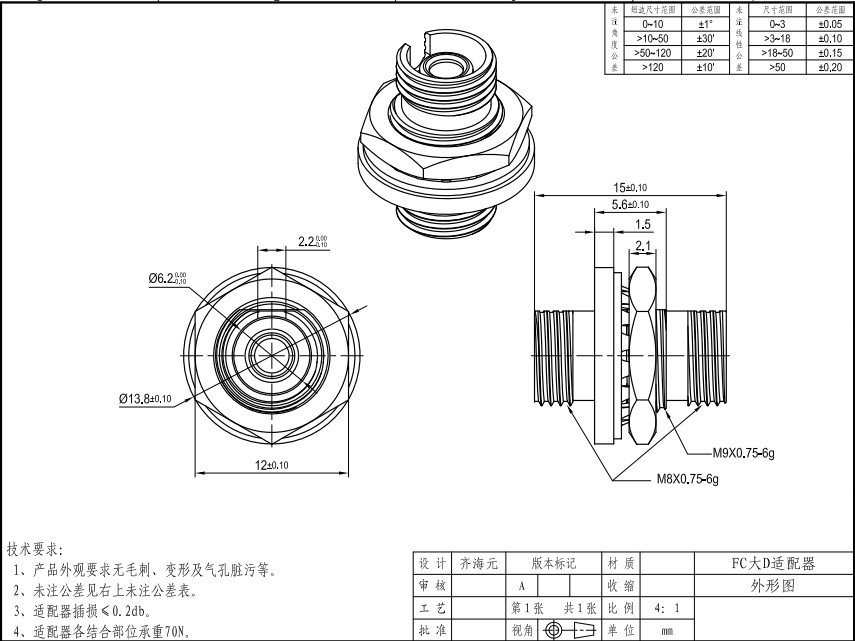

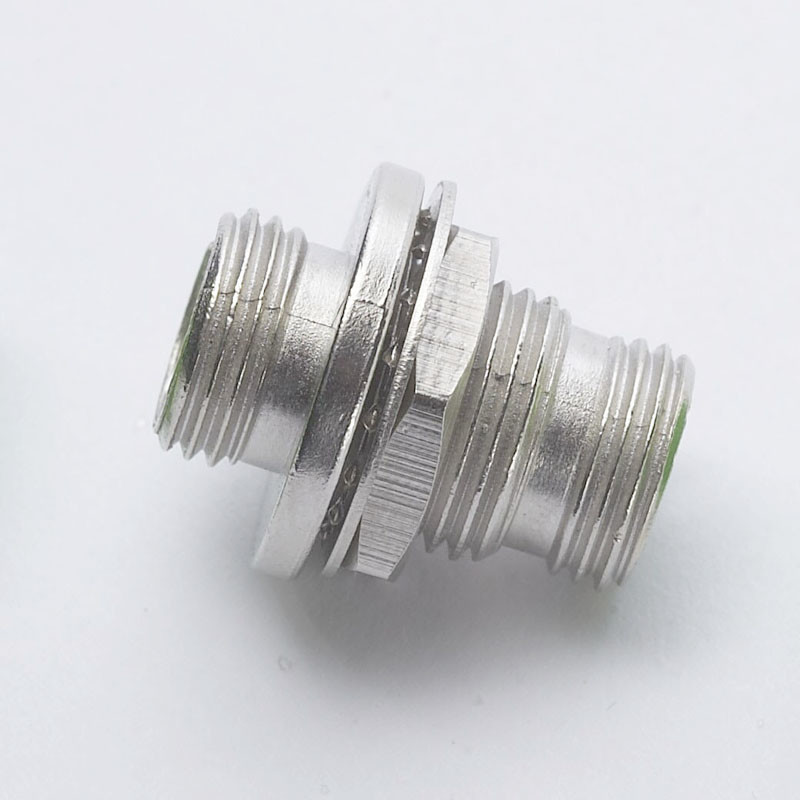

Pictures and Drawing:

Copper Alloy Big D Type FC APC ROSH Fiber Optics Accessories
Copper Alloy Big D Type FC APC ROSH Fiber Optics AccessoriesCopper Alloy Big D Type FC APC ROSH Fiber Optics Accessories
